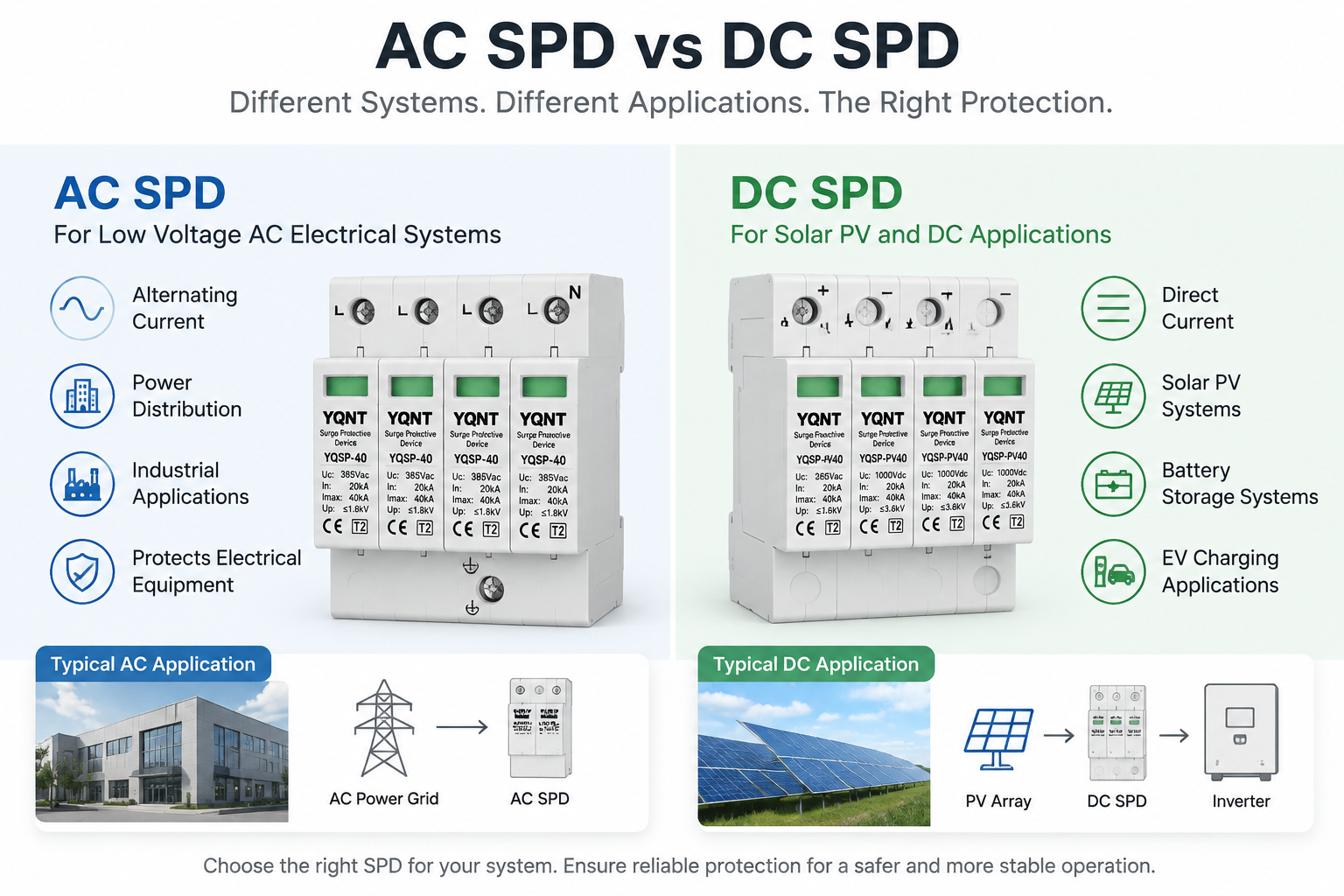

AC SPD vs DC SPD: Understanding the Differences and Applications in Electrical Systems

Choosing between an AC SPD and a DC SPD depends on the type of electrical system that needs protection. Although both devices protect equipment from transient overvoltage, they are designed for different circuit conditions.

AC SPDs are mainly used in alternating current systems, such as low-voltage distribution networks, industrial power systems, and electrical panels. DC SPDs are designed for direct current applications, including solar PV systems, battery storage systems, and other DC circuits.

A common mistake is selecting an SPD only by voltage rating. AC SPDs and DC SPDs are not interchangeable because AC and DC systems have different electrical characteristics. Engineers need to consider the system type, application location, and protection requirements before choosing the correct SPD.

What Is the Difference Between AC and DC Electrical Systems?

The main difference between AC and DC systems is the way current flows.

AC (alternating current) changes direction periodically. It is widely used in power distribution because it can be transmitted and distributed efficiently.

DC (direct current) flows in one direction with fixed polarity. It is commonly used in systems that generate, store, or use direct current power.

These different characteristics affect how surge protection devices are designed.

For surge protection, the SPD must match the electrical system it is installed in. A device designed for an AC circuit may not provide suitable protection in a DC application.

What Is an AC SPD and Where Is It Used?

An AC SPD is a surge protective device designed for alternating current electrical systems.

It protects electrical equipment from transient overvoltage caused by events such as lightning strikes, switching operations, and power disturbances.

Common AC SPD applications include:

• Low-voltage distribution systems

• Commercial buildings

• Industrial electrical panels

• Control cabinets

• Power supply systems

In these applications, the SPD is usually installed on the AC power side to reduce surge energy before it reaches sensitive equipment.

For example, an industrial control panel may include PLCs, sensors, communication modules, and other electronic components. These devices can be affected by short-duration voltage spikes. An AC SPD helps reduce the impact of these transient events.

YQNT provides AC SPD solutions for different low-voltage electrical systems, including Type 1, Type 1+2, and Type 2 SPD products. The product range covers common AC system voltages such as 275Vac, 320Vac, 385Vac, and 440Vac for different protection requirements.

Before selecting an AC SPD, engineers should confirm the system voltage, installation location, and required protection level. For more information about SPD parameters and technical specifications, you can also review how to read an SPD datasheet before product and supplier selection.

What Is a DC SPD and Where Is It Used?

A DC SPD is designed for direct current circuits where electrical conditions are different from AC systems.

DC SPDs are commonly used in:

• Solar PV systems

• Battery energy storage systems

• DC power systems

• EV charging applications

• Other DC electrical equipment

A typical example is a solar PV system.

Solar panels generate DC power, which is then converted into AC power through an inverter. Because the system contains both DC and AC sections, surge protection may be required on both sides.

The protection structure is usually:

PV Array → DC SPD → Inverter → AC SPD → Power Grid

The DC side requires a dedicated DC SPD because the circuit characteristics are different from an AC distribution system.

YQNT DC SPD solutions are designed for DC applications, including photovoltaic and other DC systems. Available voltage options include 600Vdc, 800Vdc, 1000Vdc, 1200Vdc, and 1500Vdc depending on application requirements.

For engineers working on solar projects, understanding DC surge protection for solar PV systems helps determine where DC SPDs should be installed and how they work together with AC protection devices.

Why Can’t AC SPD and DC SPD Be Used Interchangeably?

One of the most common questions from engineers and buyers is:

“Can an AC SPD be used in a DC system?”

The answer is generally no.

Although AC SPD and DC SPD may have similar external designs, their internal protection requirements are different.

AC and DC circuits handle current differently

AC systems naturally experience zero-current points because the current changes direction periodically.

DC systems do not have this natural zero crossing because current continuously flows in one direction.

This difference affects how protection devices handle surge events and electrical interruption conditions.

Voltage rating alone is not enough

A common selection mistake is choosing an SPD only based on voltage.

For example, two systems may both have a 1000V rating, but one may be an AC system, and the other may be a DC system.

The correct SPD selection also depends on:

• AC or DC system type

• Operating voltage

• Installation location

• Application environment

• Required protection level

Engineers should always match the SPD type with the electrical system rather than comparing only one specification.

AC SPD vs DC SPD: Key Differences Explained

The main differences between AC SPD and DC SPD are related to their application environment and electrical characteristics.

The selection decision should always start with the question:

“What type of electrical system am I protecting?”

If the protected circuit is an AC power network, an AC SPD is normally required.

If the protected circuit is a DC power system, a DC SPD should be selected.

Which Applications Require AC SPD or DC SPD?

Different electrical applications require different surge protection solutions.

For some modern systems, both AC and DC protection are required.

For example, an EV charging station may include an AC input section and a DC output section. The AC side protects the incoming power supply, while the DC side protects the charging circuit connected to the vehicle battery.

You can learn more about this application in surge protection for EV charging infrastructure, where AC and DC surge protection requirements are discussed in detail.

How Should Engineers Select Between AC SPD and DC SPD?

Engineers can follow a simple decision process when selecting an SPD.

Step 1: Identify the electrical system type

First, determine whether the circuit is:

• AC power system

• DC power system

This is the most important decision point.

Step 2: Confirm the operating voltage

The SPD voltage rating must match the protected system.

Selecting an SPD with an unsuitable voltage rating may reduce protection performance.

Step 3: Check the installation location

The same project may require different SPD types in different locations.

For example:

• PV string side → DC SPD

• Inverter output side → AC SPD

Step 4: Review technical documentation

Engineers and buyers should check:

• SPD type

• Voltage rating

• Discharge current parameters

• Compliance information

• Manufacturer documentation

A detailed SPD evaluation process can be found in the SPD selection guide for electrical engineers and buyers.

What Should Buyers Check Before Choosing an AC or DC SPD Supplier?

For B2B buyers, selecting the right SPD supplier is not only about product availability.

A reliable supplier should provide:

• Clear technical specifications

• Complete product documentation

• Support for different applications

• Stable manufacturing capability

• OEM or customization support when required

For AC and DC SPD projects, buyers should confirm that the supplier understands both product technology and application requirements.

A manufacturer with experience across different SPD applications can help reduce selection risks and improve project reliability.

FAQ About AC SPD vs DC SPD

Can I use an AC SPD for a DC system?

No. AC SPD and DC SPD are designed for different electrical conditions. A DC system requires an SPD specifically designed for DC characteristics, including fixed polarity and continuous current flow.

Can a DC SPD protect an AC system?

Generally, no. A DC SPD is designed for DC circuits and should not be used as a replacement for an AC SPD in AC power systems.

What SPD is used for solar PV systems?

Solar PV systems usually require DC SPDs on the PV side because solar panels generate DC power. AC SPDs may also be required on the inverter output side to protect the AC connection.

What SPD is used for EV chargers?

The required SPD depends on the charging system design. Many EV charging systems include both AC and DC sections, so protection may be required on both sides.

Are AC SPD and DC SPD standards different?

Yes. SPD requirements depend on the application and system type. Engineers should select products according to the relevant electrical standards and system requirements.

Conclusion: Choose the Right SPD Based on Your Electrical System

AC SPD and DC SPD serve different purposes. The correct choice depends on whether the protected circuit is an AC or DC system.

AC SPDs are commonly used for low-voltage AC distribution and industrial electrical systems. DC SPDs are designed for applications such as solar PV, batteries, and DC power systems.

Before selecting an SPD, engineers and buyers should evaluate the electrical system, application location, voltage requirements, and technical documentation.

YQNT provides AC and DC surge protection solutions for different low-voltage electrical applications. If you are evaluating SPD requirements for your project, you can review our AC and DC surge protection devices or contact our technical team for application support.
