IP65 vs IP67 Junction Box: Which Rating Do You Really Need?

IP65 or IP67—which junction box is right for your project?

The main difference is water protection. An IP65 junction box is dust-tight and protects against water jets. An IP67 junction box is also dust-tight but protects against temporary immersion under specified test conditions.

IP67 is not automatically better than IP65. The two ratings cover different types of water exposure.

For many outdoor electrical installations exposed to rain and water jets, a properly rated IP65 junction box may be enough. Locations where a junction box could be temporarily submerged need a different level of protection.

But the IP rating is only part of the decision. Cable entries, sealing parts, enclosure materials, and installation conditions also matter.

This guide explains the differences between IP65 and IP67 junction boxes, when each rating makes sense, and what to check before buying a plastic electrical junction box.

1. IP65 vs IP67 Junction Box: What's the Difference?

IP65 and IP67 are protection ratings defined by IEC 60529, the international standard for enclosure protection against dust and water.

An IP rating contains two numbers.

• The first number shows protection against dust and solid objects.

• The second number shows protection against water.

Both IP65 and IP67 have a first digit of 6. This means both ratings provide dust-tight protection.

The difference is the second digit.

What Does IP65 Mean for a Junction Box?

An IP65 junction box is dust-tight and protected against water jets under defined test conditions.

IP65 includes:

• IP6X: Dust-tight protection.

• IPX5: Protection against water jets.

An IP65 weatherproof junction box can be a practical option for outdoor electrical connections where the expected water exposure falls within the product's rated protection.

Common applications may include outdoor lighting connections, wall-mounted electrical connections, and equipment installed in dusty or wet locations.

However, IP65 does not mean a junction box can be submerged in water.

What Does IP67 Mean for a Junction Box?

An IP67 junction box is dust-tight and protected against temporary immersion under defined test conditions.

IP67 includes:

• IP6X: Dust-tight protection.

• IPX7: Protection against temporary immersion.

IP67 may be needed when the installation carries a real risk of temporary submersion.

For example, a low-mounted electrical enclosure near an area that can collect water may require an immersion-rated product, depending on the expected water depth, duration, and project requirements.

IP67 does not mean a junction box is suitable for permanent underwater use.

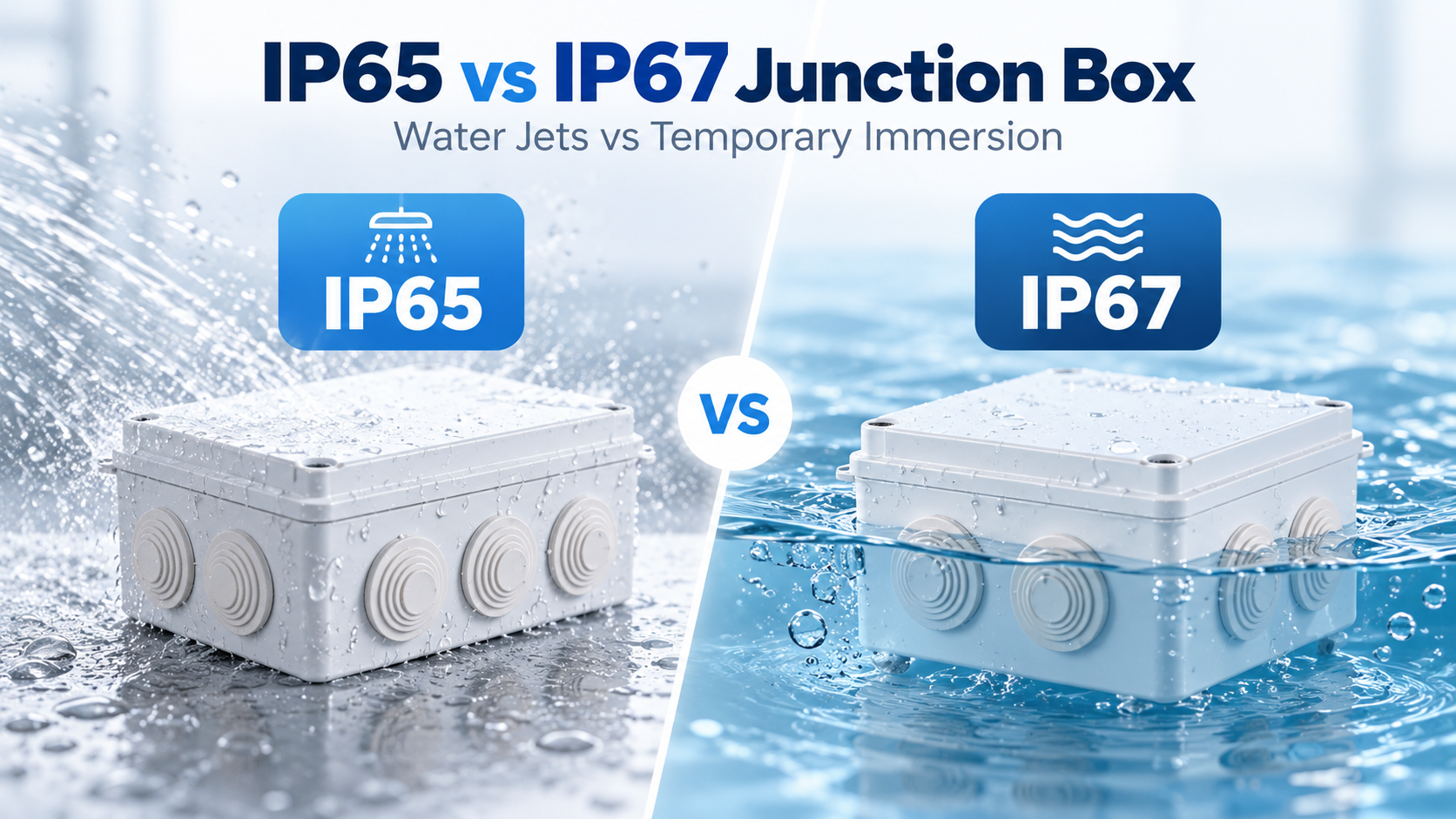

IP65 vs IP67: Quick Comparison

The key difference is how water reaches the junction box—not simply which IP number is higher.

2. Is IP67 Always Better Than IP65?

No. IP67 is not automatically the better choice for every electrical installation.

A common mistake is to assume that a higher IP number includes every lower level of water protection.

The IEC 60529 water tests do not work that way for IPX5/IPX6 and IPX7/IPX8.

Why Doesn't IP67 Automatically Include IP65 Water-Jet Protection?

IP65 and IP67 are tested against different water conditions.

IP65 is tested against water jets. Water strikes the enclosure from outside.

IP67 is tested against temporary immersion. Water surrounds the enclosure during the test.

These conditions place different demands on seals, covers, and other enclosure parts.

A junction box that passes an immersion test has not necessarily passed the required water-jet test.

For this reason, an IP67 label alone should not be treated as proof of IP65 water-jet protection.

The correct approach is to check the protection required by the installation and confirm the product's declared ratings.

When Do You Need Both Water-Jet and Immersion Protection?

Some installations face more than one type of water exposure.

Consider an electrical enclosure installed in an area that receives regular washdown and may also experience temporary flooding.

The enclosure may need protection against both water jets and temporary immersion.

In this case, buyers should check whether the product has been evaluated for both conditions.

A dual marking such as IP65/IP67 can indicate that the enclosure meets both specified water-protection tests.

A single IP67 marking does not provide the same information.

The practical rule is simple:

Choose the protection required by the environment. Do not choose an IP rating based only on the larger number.

3. When Should You Choose an IP65 or IP67 Junction Box?

The best way to choose between IP65 and IP67 is to look at the installation site.

Where will the junction box be mounted? Will the enclosure face rain, water jets, standing water, or possible immersion?

These questions matter more than choosing the highest number available.

IP65 vs IP67 Selection by Application

This table is a starting point. The final selection must match the actual installation conditions and applicable electrical requirements.

When Is an IP65 Junction Box Enough?

For many common outdoor electrical projects, a suitable IP65 junction box can provide the required dust and water protection.

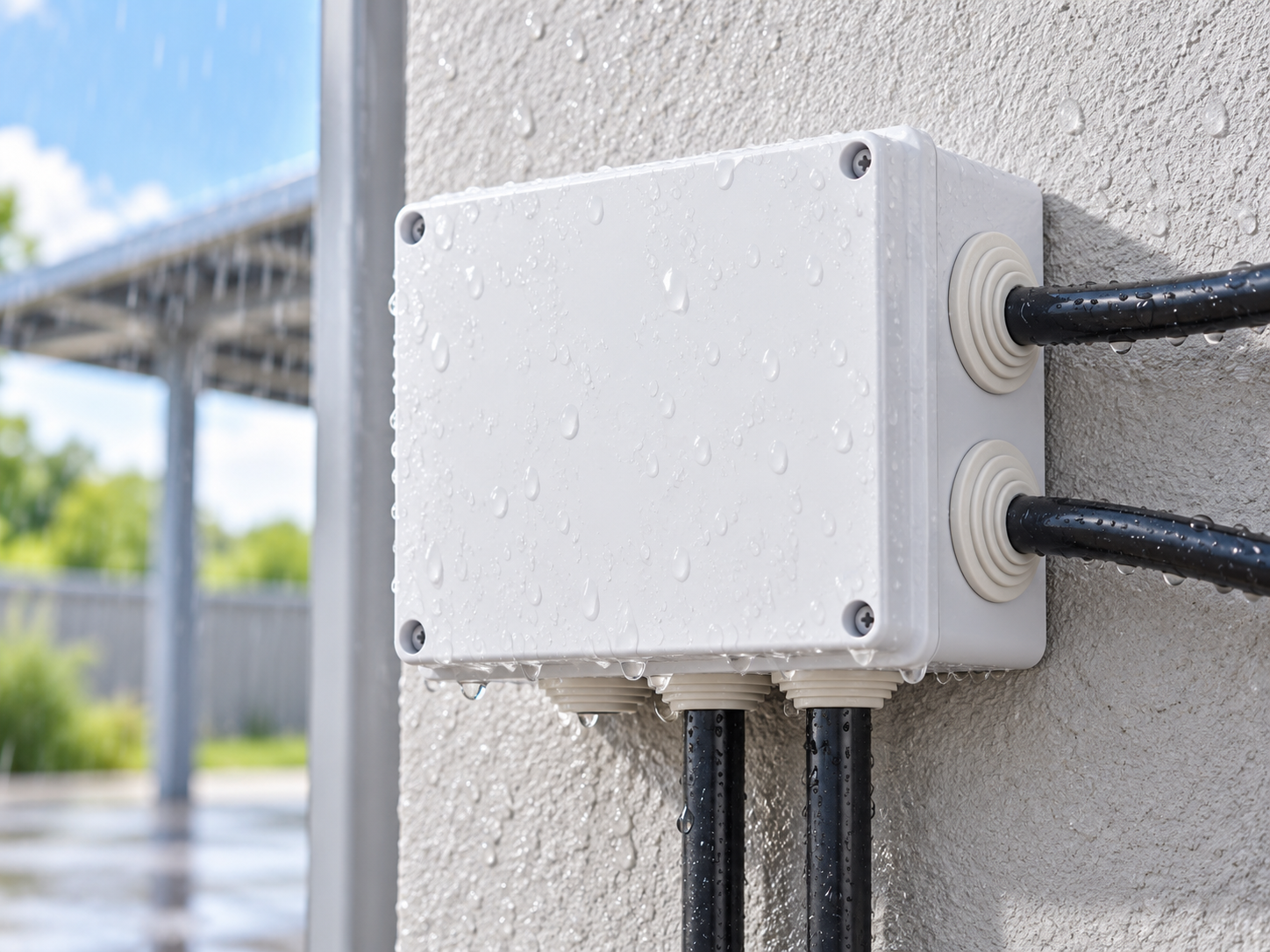

Consider a plastic junction box mounted on an exterior wall for outdoor lighting connections.

The box is exposed to rain, dust, and occasional water spray. The installation is above areas where water collects, and temporary immersion is not expected.

In this situation, an IP65 waterproof electrical junction box may be a practical choice, provided the product and complete installation meet all other requirements.

A properly selected ABS plastic junction box can also offer useful benefits:

• A lightweight housing.

• A nonconductive enclosure.

• No rust on the plastic housing.

• Different size options for electrical connections.

However, ABS material and an IP65 rating do not automatically prove UV resistance or suitability for every outdoor environment.

If the expected water exposure does not require immersion protection, there may be no reason to specify IP67 solely because the number is higher.

When Should You Consider an IP67 Junction Box?

IP67 becomes important when temporary immersion is a real possibility.

For example, an enclosure installed in a low area may be exposed to water that rises above the box during certain operating conditions.

If temporary immersion is part of the expected environment, an appropriate IP67 product should be evaluated.

The immersion conditions must still match the product's rating.

IP67 should not be treated as a guarantee against permanent submersion, flooding of unknown duration, or every water-pressure condition.

If the project requires immersion protection, do not substitute an IP65 junction box without confirming that the installation requirements can still be met.

What About Heavy Rain, Washdown, and Flood-Prone Areas?

These situations are often confused, but the water exposure can be very different.

Heavy rain: Check the exposure, installation position, required enclosure rating, and all entry fittings.

Industrial washdown: Check the actual cleaning method, water pressure, temperature, and chemicals. IP65 does not cover every washdown process.

Flood-prone areas: Evaluate whether immersion is expected, how long the box may remain submerged, and whether the complete electrical installation is suitable.

No one wants to discover water inside an electrical box after installation.

Choosing the correct IP rating is the first step. Correct product selection and installation are just as important.

4. Why Can an IP-Rated Junction Box Still Let Water In?

An IP-rated junction box is designed to resist water under specified conditions.

However, the declared protection can be affected by damaged parts, incorrect fittings, or changes made during installation.

A common problem is focusing on the IP65 or IP67 label while overlooking cable entries and cover sealing.

Cable Entries, Gaskets, and Unused Openings

A waterproof junction box has several areas that need attention.

Cable entries deserve particular attention.

An IP65 junction box may have prepared entry points or openings for cables. However, the entry design must match the intended wiring method.

Some installations require suitable cable glands. Others use compatible sealing membranes, grommets, or entry fittings.

These parts are not automatically interchangeable.

A cable entry that looks tightly sealed may still be unsuitable for the cable diameter or installation conditions.

A junction box with an IP65 label does not automatically maintain IP65 protection after any cable-entry modification.

The same principle applies to IP67 products.

Why Installation and Condensation Still Matter

Correct installation helps preserve the intended enclosure protection.

The cover should close as designed. Entry fittings should match the cables. Unused openings should be sealed according to the product instructions.

The mounting method must also avoid damage to the housing.

Another issue is condensation.

A sealed junction box can still contain moisture in the air. Temperature changes may cause that moisture to condense on internal surfaces.

Condensation is different from rainwater entering through an opening.

A higher IP rating does not automatically solve condensation problems.

For applications with large temperature changes or sensitive electrical components, condensation control may need separate attention.

The important point is straightforward:

IP ratings describe protection against specified external conditions. The complete installation determines whether that protection is preserved in use.

5. How to Choose the Right ABS Plastic Junction Box

Once the required IP rating is clear, the next step is choosing the actual enclosure.

For buyers who need an IP65 electrical junction box, product selection should start with material, dimensions, internal space, and cable-entry requirements.

These details can matter just as much as the IP rating.

Check the Material, Size, and Cable Entries

1. Check the housing material.

ABS is commonly used for plastic electrical enclosures.

ABS housings are lightweight, nonconductive, and do not rust. However, UV performance, temperature limits, and chemical resistance depend on the actual material grade and product design.

An IP65 rating alone does not confirm these properties.

2. Choose the correct size.

The box must provide enough space for the intended wiring and connectors.

External dimensions are useful for comparing products, but buyers should also consider internal space and any required wiring-space rules.

3. Check the cable-entry arrangement.

Count the cables and identify the required entry positions.

A junction box with the wrong cable-entry layout can create unnecessary installation work.

Check the available entry design and compatible fittings before ordering.

4. Confirm the mounting method.

Consider the installation surface, required mounting position, and access for future inspection.

For outdoor use, the installation must also preserve the enclosure's required protection.

Comparing Available YQNT IP65 Plastic Junction Boxes

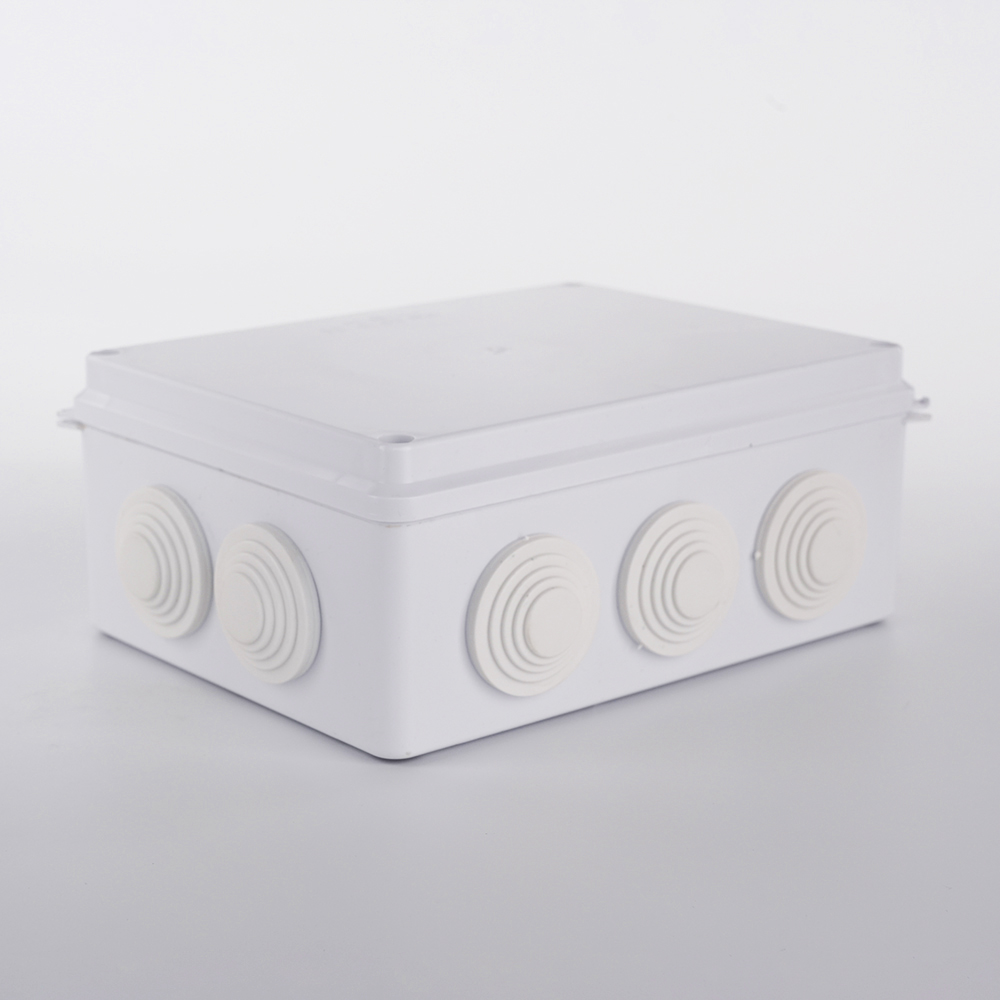

YQNT lists ABS plastic junction boxes in different sizes, including models in the RFB-RT series.

For example, the product pages provide the following information:

Both models are listed as IP65 waterproof junction boxes.

The listed protection rating is the same, but the dimensions are different.

This gives buyers a clear starting point when comparing enclosure sizes.

However, the published dimensions and IP rating do not confirm every requirement of a specific electrical project. Cable fittings, internal clearance, UV exposure, and other installation conditions may need further confirmation.

Buyers looking for an IP65 weatherproof junction box can review the available product range here:

Explore YQNT Plastic Junction Boxes

The collection includes different plastic junction box sizes and configurations.

For projects that specifically require IP67, confirm the availability and actual rating of a suitable IP67 model before placing an order. An IP65 model should not be treated as an equivalent replacement.

6. What Should B2B Buyers Check Before Ordering?

For electrical contractors, equipment manufacturers, distributors, and project buyers, choosing an IP rating is only the beginning.

A good purchase starts with clear project requirements.

Before contacting an IP65 junction box manufacturer or supplier, prepare the following information:

Check More Than the IP Label

A product catalog can help buyers compare sizes and available designs.

However, the final purchase should match the actual electrical installation.

For projects with special requirements, buyers may need to confirm:

• The exact product model and declared IP rating.

• The available cable-entry arrangement.

• The mounting and installation instructions.

• Any relevant temperature or outdoor-use limitations.

• Applicable product documentation for the target market.

For bulk orders, confirming these details before purchasing can help reduce incorrect product selection and unnecessary changes later.

YQNT supplies ABS plastic junction boxes for electrical applications and provides product inquiry options through its catalog.

Buyers can review the YQNT Junction Box Collection and send the required dimensions, IP rating, cable-entry needs, and estimated order quantity for product matching.

A clear specification is more useful than simply requesting the highest IP rating available.

For projects in the United States, check whether the electrical enclosure must meet a specific NEMA Type rating. IP ratings and NEMA Type ratings are not directly interchangeable. NEMA Type requirements cover additional factors, such as corrosion and other environmental conditions, beyond the dust and water protection described by an IP rating.

For more details, see the NEMA enclosure rating guidance.

Final Verdict: IP65 or IP67?

Choose an IP65 junction box when the product meets the installation's required dust and water-jet protection, and temporary immersion is not part of the expected conditions.

Choose an IP67 junction box when the project requires protection against temporary immersion under the applicable rated conditions.

If the installation requires both water-jet and immersion protection, check whether the selected product meets both requirements.

For outdoor electrical projects, also consider UV exposure, enclosure material, cable entries, and the complete installation.

The best junction box is not the one with the highest IP number. The best junction box is the one that provides the protection your project actually needs.
