Plastic vs Metal Junction Box: Which Is Better for Your Application?

Plastic or metal junction box—which one should you choose?

The answer depends on where the junction box will be installed and what kind of protection the electrical connections need.

Plastic junction boxes are lightweight, do not rust, and have nonconductive housings. Metal junction boxes are generally stronger and better suited to some exposed or heavy-duty installations.

But choosing a junction box based on material alone can lead to problems. A strong metal box can still corrode. A waterproof plastic box can still let water in if the cable entries are not sealed correctly.

The better choice is the junction box that fits the wiring method, installation conditions, and safety requirements.

This guide compares plastic and metal junction boxes, explains the main safety concerns, and shows what to check before buying a junction box for an electrical project.

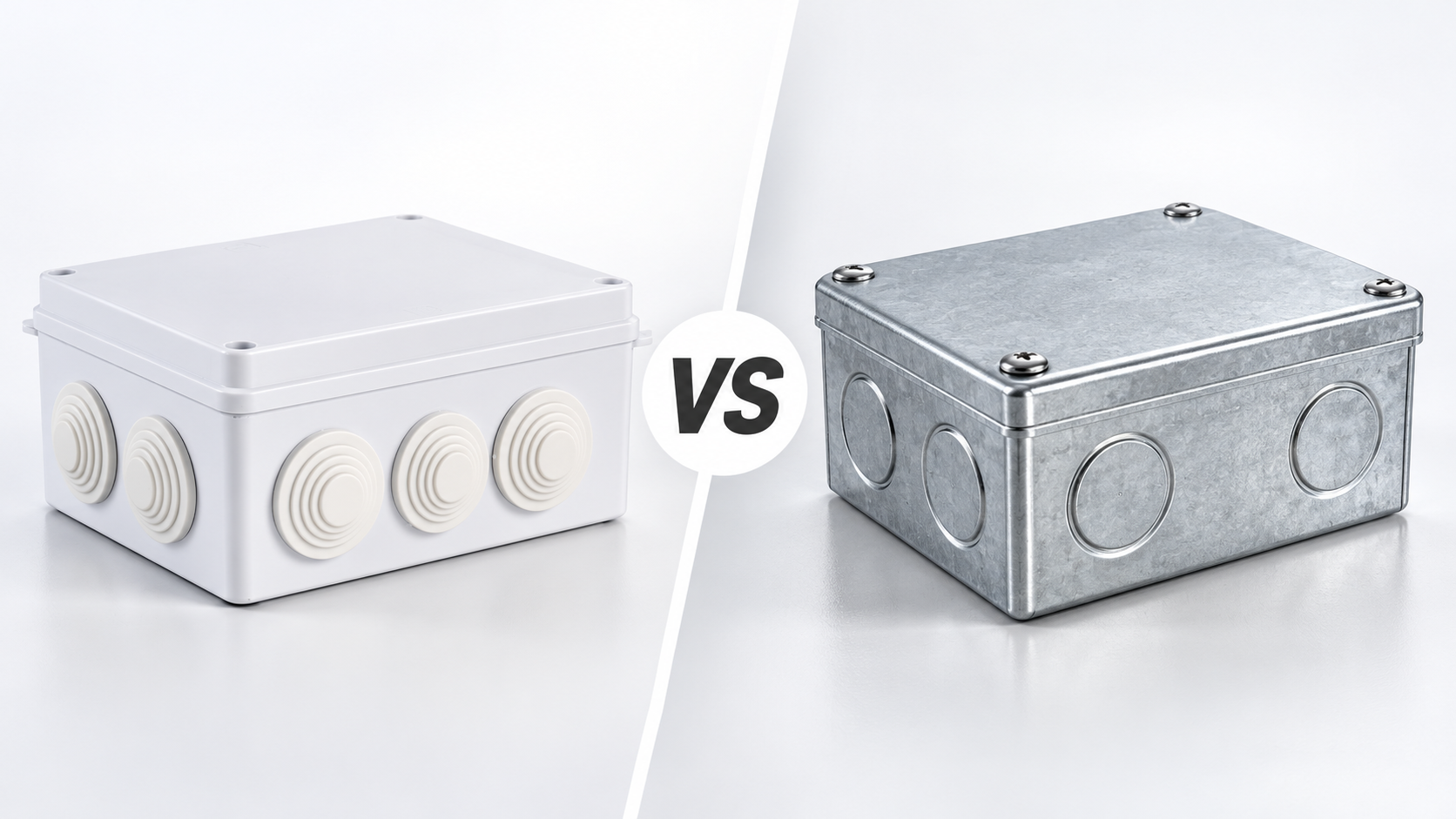

1. Plastic vs Metal Junction Boxes: Key Differences

Plastic and metal junction boxes protect electrical connections from damage, dust, and other external conditions. Both materials can work well when the junction box is designed for the application.

The main differences are weight, strength, electrical conductivity, corrosion resistance, and cost.

Which material is better?

Plastic junction boxes are often a practical choice for installations that need a lightweight, corrosion-resistant enclosure. Metal junction boxes are often preferred where mechanical strength or specific wiring requirements matter more.

However, material quality matters.

Don't compare a thin plastic box directly with a heavy-duty metal enclosure. Likewise, stainless steel and ordinary painted steel do not offer the same corrosion resistance.

The most useful comparison is between junction boxes designed for the same job.

2. Is a Plastic or Metal Junction Box Safer?

Safety is one of the biggest concerns when choosing between a plastic and metal electrical box.

Plastic does not conduct electricity. Metal offers greater resistance to many types of physical damage and high heat.

So, is metal always safer?

No. Both materials can be safe when the junction box is suitable for the installation and installed correctly.

The main safety differences involve grounding, heat, and mechanical protection.

Grounding and bonding: Does a plastic junction box need grounding?

A plastic junction box has a nonconductive housing. The plastic housing does not need to be bonded like a metal box.

However, that does not mean the electrical circuit can operate without the grounding required by the applicable code.

Grounding may still be needed for connected equipment, metal fittings, and other conductive parts.

Metal junction boxes have different requirements. Because metal conducts electricity, the enclosure must be properly bonded when required by the electrical code.

The wiring method also matters.

For example, metal conduit and armored cable may form part of the equipment grounding path. A plastic junction box can only be used with such wiring where the approved connections and bonding arrangements meet the applicable requirements.

The important rule is simple: a plastic box does not remove grounding requirements, and a metal box is not safe just because the housing is made of metal.

Always check the cable type, fittings, installation instructions, and local electrical code before choosing an enclosure.

Fire and heat resistance: Is a metal junction box safer?

Metal junction boxes generally handle high temperatures better than plastic junction boxes.

Most common enclosure plastics can soften or lose strength when exposed to enough heat. Metal housings usually keep their shape at temperatures that would damage common plastics.

This is one reason metal boxes are often considered for demanding industrial environments.

However, the material alone does not determine fire safety.

Electrical-grade plastic boxes can be designed and evaluated to meet specific safety requirements. Material grade, intended use, and product standards all matter.

A metal box also cannot prevent every electrical fire. Loose connections, damaged wiring, and incorrect installation can create dangerous heat inside either type of enclosure.

For normal use, choose a junction box with the required electrical and temperature ratings.

For installations with unusual heat exposure, check the actual product limits instead of assuming all metal or plastic boxes perform the same way.

Mechanical strength: Where does metal have an advantage?

Metal junction boxes generally provide better protection against heavy impacts and crushing.

That makes metal a common choice for exposed industrial wiring, workshops, and places where electrical boxes could be hit by tools or equipment.

Plastic junction boxes can also provide good protection, but strength depends on the material and design.

For example, ABS and polycarbonate have different material properties. Even two ABS boxes may have different strength because of wall thickness, mounting points, and cover design.

Installation matters too.

Overtightening a screw can crack a plastic mounting point. Poorly protected cable entries can damage wires. Metal boxes may have sharp edges that need suitable fittings.

For areas with a high risk of physical damage, compare the actual impact and mounting requirements—not just the material name.

3. When Should You Choose a Plastic or Metal Junction Box?

The easiest way to choose a junction box is to start with the installation location.

A junction box inside a dry building does not face the same conditions as a box mounted outdoors or near industrial equipment.

Before comparing prices, answer four questions:

1. What type of cable or conduit will enter the junction box?

2. Will the box face water, sunlight, chemicals, or extreme temperatures?

3. Could the box be hit, crushed, or exposed to strong vibration?

4. Does the selected product meet the required electrical and installation standards?

These answers help narrow the options.

Plastic vs metal junction box by application

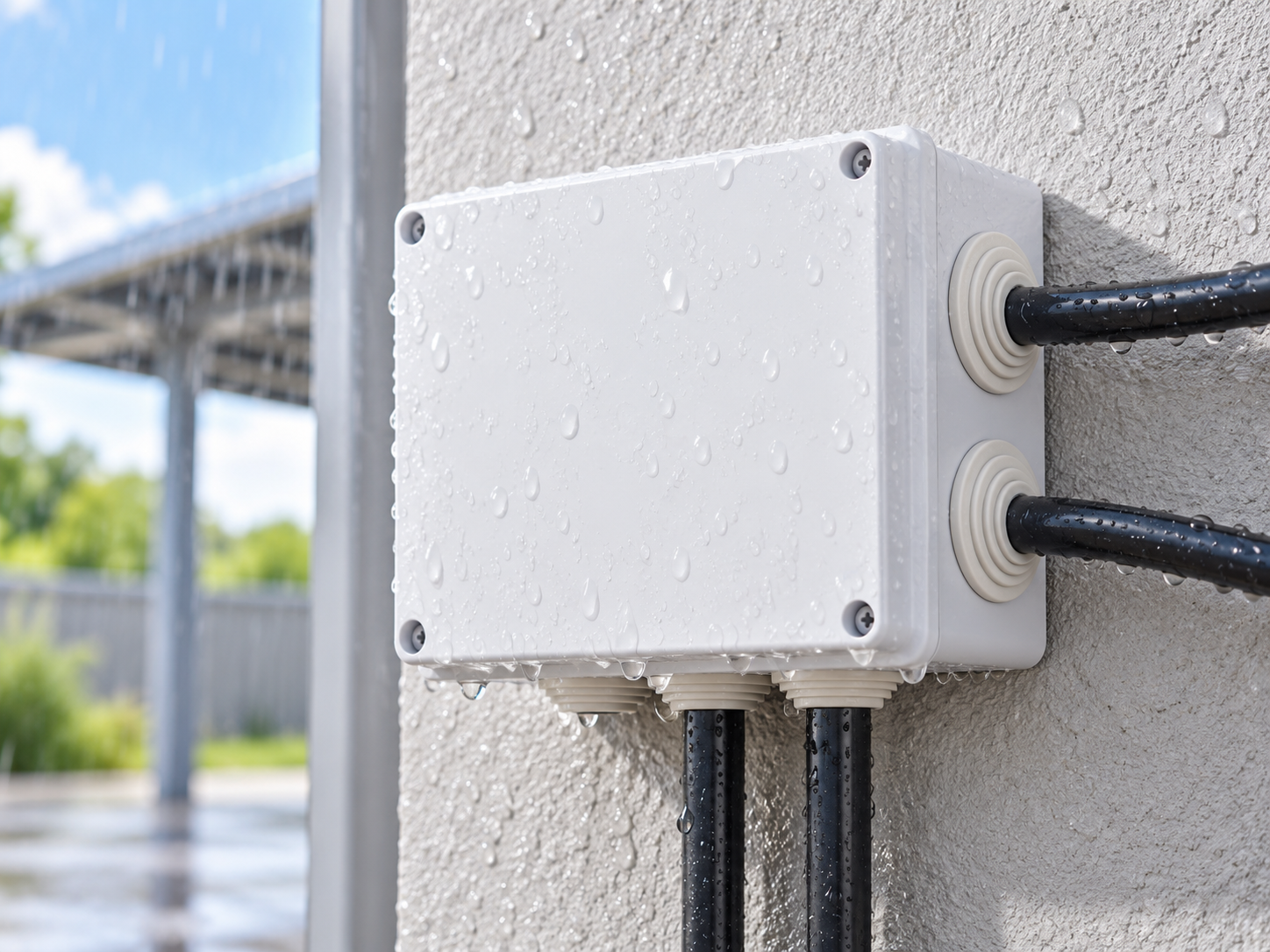

Example 1: Outdoor lighting connections

Consider a junction box installed on an outdoor wall near a garden or parking area.

The box may face rain, dust, sunlight, and changing temperatures.

A properly rated plastic junction box can be a good option. The plastic housing does not rust, and the lightweight design can make handling easier.

However, the enclosure must have suitable protection against water and dust. The housing material must also be suitable for the expected sunlight and temperatures.

Metal can also work in the same location, provided the product has suitable corrosion protection and environmental ratings.

For outdoor lighting, water protection and long-term environmental suitability matter more than material preference.

Example 2: Industrial wiring near machinery

Now consider a junction box installed beside moving equipment.

The box may face accidental impacts, vibration, or damage from nearby tools.

A metal junction box may be the better choice when strong mechanical protection is required.

A suitable industrial plastic enclosure may also work if the product meets the mechanical and installation requirements.

In either case, buyers should check mounting strength, cable connections, and the protection needed for the location.

The key point is straightforward: choose the junction box based on the risks at the installation site.

4. Plastic vs Metal Junction Boxes for Outdoor Use: What Really Matters?

Outdoor applications are one area where plastic junction boxes can offer useful advantages.

Plastic housings do not rust like ordinary steel. A suitable plastic enclosure can therefore be a practical choice for locations exposed to moisture.

But outdoor performance involves more than rust resistance.

A junction box must also protect electrical connections from water and dust. Sunlight, temperature changes, cable entries, and sealing parts can affect long-term performance.

Does IP65 mean a junction box is waterproof?

An IP65 junction box is dust-tight and protected against water jets under defined test conditions.

The IP rating comes from the IEC 60529 system.

The two digits describe different forms of protection:

• IP6X: The enclosure is dust-tight.

• IPX5: The enclosure is protected against water jets.

IP65 is useful for many applications that need protection against dust and water. However, IP65 does not mean the junction box can be used underwater.

IP65 also does not automatically prove that a product can handle years of direct sunlight, strong cleaning chemicals, or high-pressure washdown.

A common mistake is to treat the IP rating as a complete outdoor durability rating.

It is not.

The IP rating explanation from Schneider Electric provides more detail about how the two digits work.

For projects that specify a NEMA enclosure Type, check the required Type separately. An IP65 rating cannot simply be converted into NEMA 4 or NEMA 4X.

Why can water still get inside a waterproof junction box?

Nobody wants to open a junction box after a heavy rain and find moisture around the electrical connections.

Yet water-entry problems can happen even when the selected enclosure has a suitable IP rating.

The problem is not always the box material.

Water protection also depends on the cover, sealing parts, cable entries, and installation.

A waterproof junction box is only as effective as its completed installation.

For example, an IP65 enclosure may not maintain its intended protection if an unsuitable cable gland is installed.

Likewise, drilling additional holes without the correct fittings can create new paths for water.

Condensation is another concern.

Moisture can sometimes form inside an enclosure as temperatures change. A sealed housing does not automatically remove every condensation risk.

For outdoor projects, pay attention to the entire enclosure setup, including cables, fittings, seals, and mounting position.

Are all plastic junction boxes suitable for outdoor use?

No. Different plastics have different properties.

ABS, polycarbonate (PC), and PVC are commonly used in electrical products, but each material comes in different grades.

The material name alone does not tell the full story.

For example, a plastic junction box made from ABS does not automatically have poor outdoor performance. However, ABS alone is not proof that the enclosure will withstand long-term sunlight.

The same principle applies to PC and PVC.

For outdoor use, check the material's suitability for sunlight, expected temperatures, and any chemicals present.

The UL Solutions guidance on outdoor enclosures also explains why UV exposure, gaskets, and other environmental factors may need separate evaluation.

The bottom line: A plastic junction box can be a good outdoor choice, but the actual product and installation conditions matter more than the word "plastic."

5. How to Choose the Right Junction Box Before Buying

Once the material and installation requirements are clear, the next step is choosing the right product.

For electrical contractors, equipment manufacturers, distributors, and project buyers, the goal is not simply to find the lowest price.

The goal is to find a junction box that fits the installation without creating avoidable problems later.

A few basic checks can make product selection much easier.

Check the size, material, and IP rating

Start with the product information.

1. Choose the correct size.

A junction box needs enough internal space for the planned wiring, connectors, and other components.

External dimensions alone may not show the actual usable space.

For larger electrical projects, check the drawing or internal dimensions when available. Any required box-fill and wiring-space rules must also be met.

2. Check the housing material.

Plastic junction boxes may use ABS, PC, PVC, or other materials.

Metal junction boxes may use steel, aluminum, stainless steel, or other metals.

Choose a material that fits the installation environment.

3. Check the IP rating.

For outdoor or dusty locations, look for a protection rating that matches the expected exposure.

An IP65 label is useful information, but it should not be the only reason for choosing an outdoor junction box.

4. Check the cable-entry arrangement.

Make sure the enclosure can accept the required cables and fittings.

Some junction boxes have prepared entry points. Others may require suitable drilling or separate fittings.

Any modifications must follow the product instructions and preserve the required protection.

5. Check the mounting method.

Make sure the junction box can be installed securely and that the cover remains accessible for inspection or maintenance.

These checks may sound basic, but an incorrect size or cable-entry arrangement can turn a simple installation into an expensive inconvenience.

Common buying mistakes to avoid

Choosing plastic junction boxes for electrical projects

For buyers looking for plastic enclosures, the product catalog is a useful place to start.

YQNT offers a range of ABS plastic junction boxes in different sizes. The catalog includes outdoor junction box models with stated IP65 ratings, including the RFB-RT series.

For example, the product listings include RFB-RT 150×110×70 and RFB-RT 150×150×70 junction boxes. The product pages identify ABS as the housing material and IP65 as the listed protection rating.

These details help buyers compare available options.

However, a catalog listing does not answer every question about a specific installation. Requirements such as UV exposure, special cable fittings, or other environmental conditions should still be checked before ordering.

Explore the YQNT Plastic Junction Box Collection to review the available styles and sizes.

For a project inquiry, include the following details:

• Required junction box dimensions.

• Installation location: indoor or outdoor.

• Expected water, dust, and sunlight exposure.

• Cable-entry requirements.

• Required protection rating and target market.

• Estimated order quantity and any customization needs.

Clear project details make it easier to identify suitable product options and avoid unnecessary back-and-forth during purchasing.

6. Final Verdict: Plastic or Metal Junction Box?

Both plastic and metal junction boxes have clear advantages. Neither material is the right choice for every project.

Choose a plastic junction box when the installation allows a nonmetallic enclosure and the project benefits from lightweight construction, electrical insulation, and resistance to rust. Properly rated plastic boxes can work well in many indoor and outdoor applications.

Choose a metal junction box when the project needs greater mechanical protection or when the wiring system and other requirements favor a metal enclosure. Corrosion protection and proper bonding still matter.

For outdoor installations, check the IP rating, material suitability, cable fittings, and mounting conditions.

For industrial applications, consider mechanical stress, electrical requirements, and the surrounding environment.

The best junction box is not always the cheapest or strongest option.

The best junction box is the one that provides the right protection for the job, meets the applicable electrical requirements, and fits the installation.
