Installing a Type 2 SPD in a low-voltage electrical system is not simply about placing a surge protective device inside a distribution cabinet and connecting a few wires.
Actual protection performance depends on several engineering factors, including installation location, electrical system configuration, wiring method, conductor length, grounding connection, and SPD technical parameters.
For engineers, panel builders, and electrical equipment purchasers, the key question is not only:
“How do I install a Type 2 SPD?”
but also:
“Where should a Type 2 SPD be installed, how should it be connected, and how can I verify that the installation provides effective surge protection?”
A properly designed SPD Type 2 installation helps reduce transient overvoltage risks in low-voltage distribution systems and improves the protection level of connected electrical equipment.
This guide explains the engineering considerations behind Type 2 SPD installation, based on practical low-voltage protection design requirements and IEC 61643-11 related principles.
A Type 2 surge protective device is mainly designed for protection against transient overvoltages that occur inside low-voltage electrical installations.
Compared with a Type 1 SPD, which is commonly installed at the incoming power supply side to handle partial lightning current, a Type 2 SPD is normally installed downstream in distribution boards to protect electrical circuits and connected equipment.
In typical low-voltage applications, Type 2 SPD installation is used for:
commercial buildings;
industrial distribution systems;
photovoltaic AC distribution systems;
control panels;
automation equipment;
electrical cabinets.
The role of a Type 2 SPD is to limit surge voltage to a safer level by diverting transient energy through the protection path, reducing the voltage stress applied to downstream electrical equipment.
However, the SPD itself is only one part of the protection system.
The installation method determines whether the device can achieve its expected protection performance.
One of the most common questions from electrical designers is:
In most low-voltage systems, a Type 2 SPD is installed inside the main distribution board (MDB) or a downstream distribution panel.
The typical installation position is:
Power supply → Main breaker → Type 2 SPD → Downstream circuits
The reason is simple:
A Type 2 SPD needs to protect the electrical installation after the main incoming protection point while keeping the connection path short.
A long distance between the SPD and the protected equipment increases residual voltage during surge events, reducing the actual protection effect.
For commercial and industrial applications, Type 2 SPD is commonly installed in:
main distribution cabinets;
low voltage switchboards;
power distribution panels;
control cabinets.

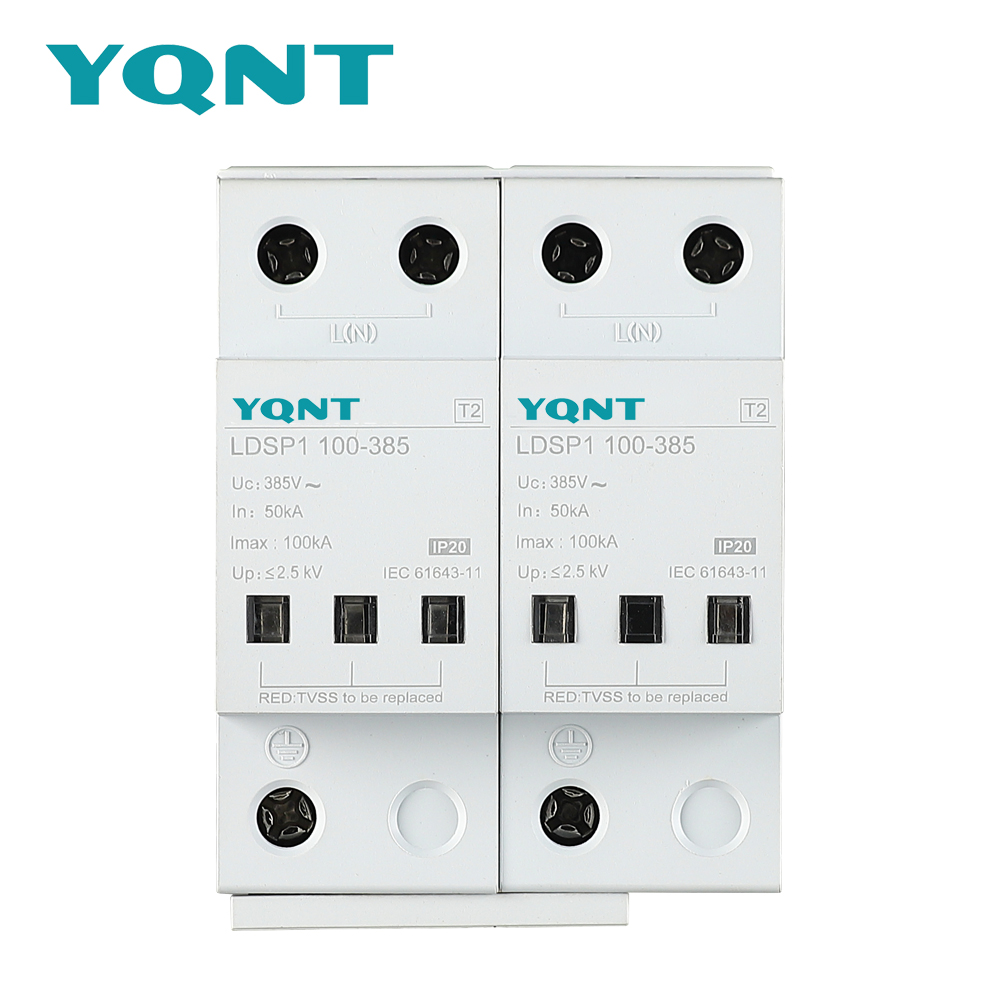

For example, YQNT Type 2 SPD products use a DIN rail mounting design, allowing integration into standard electrical cabinets.
The LDSP1s-D20 series is designed for low-voltage AC distribution applications with:
Type 2 surge protection;
In: 10kA (8/20μs);
Imax: 20kA (8/20μs);
Up: ≤1.5kV;
DIN rail installation.
These parameters allow engineers to select suitable protection according to system requirements. The correct installation location depends on the electrical environment, protection target, and system design. For a broader understanding of where SPDs are applied, see our guide on SPD applications in low-voltage electrical systems.
Before installation, engineers should also confirm that the selected SPD matches the application requirements, including system voltage, protection level, and discharge capability. A detailed selection process is available in our guide on selecting the right SPD based on electrical system requirements.
Several key parameters should be checked.
Uc is one of the most important selection parameters.
The SPD maximum continuous operating voltage must be suitable for the system voltage.
For example:
A Type 2 SPD designed for a 385Vac system should not be installed in a system with a higher operating voltage beyond its specification.
Incorrect Uc selection may lead to unnecessary SPD operation or insufficient protection.
The nominal discharge current (In) represents the SPD discharge capability under an 8/20μs waveform test.
It is an important reference parameter when evaluating SPD performance.
For example:
YQNT LDSP1s-D20:
In: 10kA (8/20μs)
This value indicates the SPD's tested discharge capability under standard surge current conditions.
Imax represents the maximum discharge current that the SPD can withstand during a surge event.
The LDSP1s-D20 Type 2 SPD provides:
Imax: 20kA (8/20μs)
When selecting an SPD, engineers should consider the expected surge environment and installation category.
Up indicates the residual voltage level that appears across protected terminals during SPD operation.
A lower Up generally means better voltage limitation performance.
For example:
LDSP1s-D20:
Up ≤1.5kV
This parameter is especially important when protecting sensitive electrical equipment.
A Type 2 SPD is normally connected in parallel with the electrical system.
The connection path typically includes:
phase conductor (L);
neutral conductor (N), depending on protection mode;
protective earth conductor (PE).
The SPD does not carry normal load current.
Instead, it provides a low-impedance path for transient surge current when an overvoltage event occurs.
The correct connection depends on the earthing system.
Common configurations include:
Typically used for:
single-phase systems;
L-N and N-PE protection.
Common in:
TT systems;
three-phase distribution systems requiring neutral protection.
Used where:
phase-to-earth protection is required.
The protection mode must match the actual electrical installation.
Selecting the wrong configuration may reduce protection effectiveness.
One of the most important installation rules:
Keep SPD connection conductors as short as possible.
Long wiring increases inductive voltage during surge current flow.
This can reduce the practical protection level compared with the SPD datasheet value.
The PE conductor is a critical part of the surge discharge path.
The grounding connection should be:
short;
direct;
properly tightened.
A poor earth connection may prevent the SPD from effectively diverting surge energy.
Before installation, confirm:
system voltage;
phase configuration;
earthing system;
SPD protection mode.
Most modern Type 2 SPDs use a 35mm DIN rail mounting structure.
The SPD should be securely installed inside the electrical cabinet.
Follow the manufacturer's wiring diagram.
Typical connections:
L → phase terminal;
N → neutral terminal;
PE → protective earth terminal.
Verify:
terminal tightening;
conductor position;
insulation distance.
Many Type 2 SPDs include visual status indication.
For example:
YQNT LDSP1s-D20 provides normal/fault indication to help maintenance personnel quickly identify SPD operating status.
Optional remote signalling can also be used for monitoring systems.
A technically correct SPD installation can still provide reduced protection if installed too far away.
Choosing an SPD with an unsuitable Uc may affect reliability.
The protection mode must match the actual system grounding arrangement.
Long conductors and unnecessary bends increase impedance during surge discharge.
After installation, engineers should check:
SPD status indicator;
terminal connections;
grounding connection;
remote signalling function if installed.
SPD maintenance is normally based on visual inspection and system operating conditions.
A damaged SPD should be replaced according to manufacturer recommendations.
A Type 2 SPD is normally installed in low-voltage distribution boards, such as main distribution boards or sub-distribution panels, depending on the protection design.
Yes. The SPD installation should follow manufacturer requirements regarding backup fuse or circuit breaker coordination.
Yes, if the cabinet requires transient overvoltage protection and the SPD parameters match the electrical system.
Type 1 SPD is mainly associated with incoming lightning current protection, while Type 2 SPD is generally installed in distribution boards for internal surge protection. For a detailed comparison of installation requirements, discharge capability, and application scenarios, see our guide on the difference between Type 1 and Type 2 SPD.
A Type 2 SPD installation is not only about choosing the correct surge protective device.
The final protection performance depends on:
correct installation location;
suitable SPD parameters;
proper protection mode;
short wiring connections;
reliable grounding.
For electrical engineers and purchasers, understanding these installation principles helps ensure that the selected SPD can provide effective protection in real low-voltage electrical systems.
If you are evaluating Type 2 SPD solutions for distribution applications, selecting a manufacturer with verified technical documentation and application experience is also an important part of the protection design process. A detailed guide on how to evaluate a surge protection device manufacturer can help engineers compare technical capability, standards compliance, and product documentation before making a purchasing decision.
