Views: 0 Author: YNQT Technical Team Publish Time: 2026-10-06 Origin: Site
An SPD that shows a fault indicator, overheats, disconnects, or becomes damaged needs diagnosis before replacement. Determine whether it has reached end of life or an abnormal condition caused the failure.
This matters when the same SPD fails more than once. Replacement may restore surge protection, but it will not remove the underlying condition. The path is: identify the symptom, check the system, verify the installation, then replace the device when appropriate.

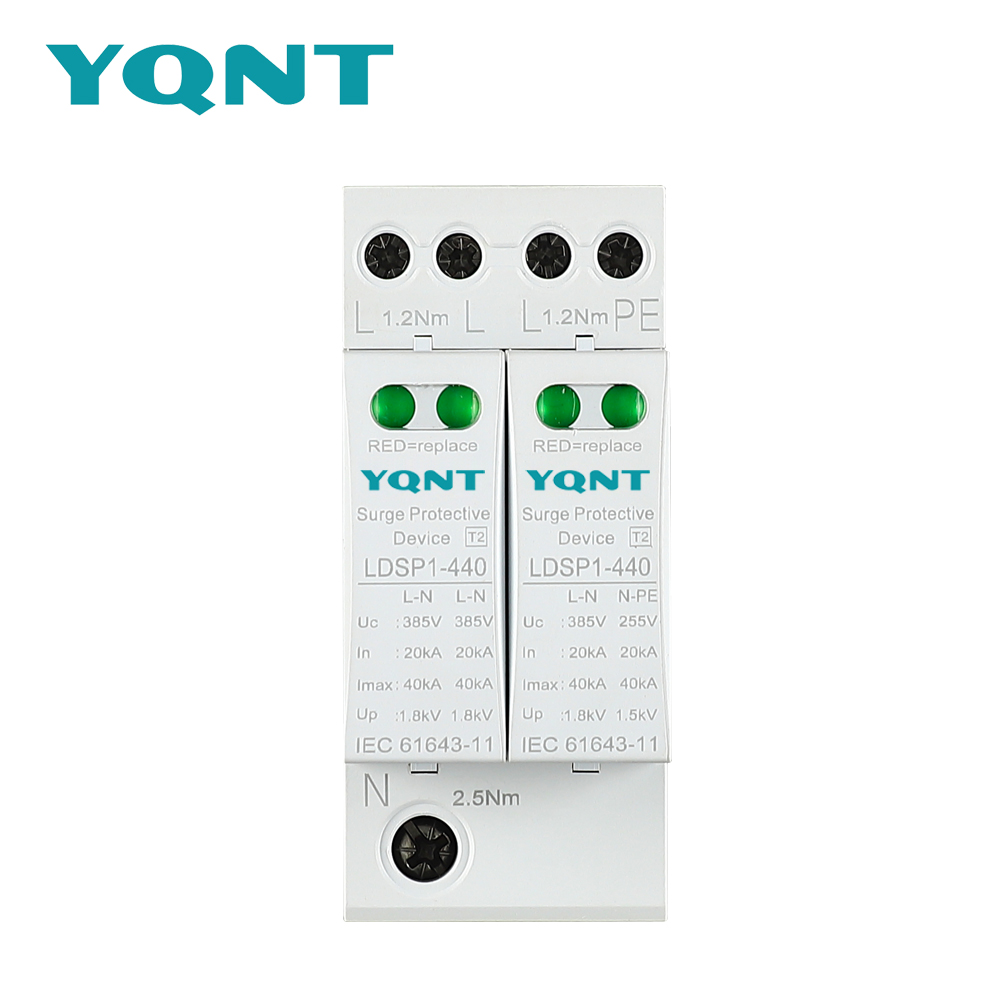

Start with device status. Many modular SPDs use a visual indicator, and some provide remote signalling.
A red or fault indication normally means the module is no longer in its normal operating state. The meaning is product-specific; check the manufacturer's instructions.
The IET advises checking the SPD status indicator during inspection and seeking expert advice if it shows that the device is not operational. The indicator is not a root-cause test.
Yes. An SPD is connected in parallel with the protected circuit. It can lose its surge protection function while the load remains energized.
An energized machine does not prove that the SPD is operational.
Check for overheating, discoloration, cracked housing, melted parts, damaged terminals, or an unusual smell. These signs can indicate electrical stress.
Do not open or repair a damaged SPD. Follow the manufacturer's instructions.
An SPD can reach end of life after surge stress, or fail because of abnormal voltage, installation conditions, or another fault. These cases need different responses.
A useful rule is: a failed SPD needs investigation, not automatic blame on the product.
Surge components are exposed to electrical stress when they limit transients. For MOV-based designs, repeated stress can increase leakage current and thermal stress. The supplied technical material notes that aging of varistor resistance elements can cause temperature rise and eventual destruction.
End-of-life after a major surge is different from repeated failure under normal conditions.
TOV lasts much longer than a normal transient. If the applied voltage is unsuitable for the device or the system develops an abnormal condition, the SPD may heat, disconnect, or fail.
Do not judge the failure by kA rating alone. Check the applied voltage.
Before replacing the device, check Uc, Up, In, Imax, Iimp, protection mode, Isccr, and backup protection against the exact product datasheet. You can also read an SPD datasheet step by step before deciding whether the replacement model is actually suitable.
Loose terminals, incorrect protection modes, poor bonding, wrong wiring, or changes to the electrical system can create conditions that an otherwise suitable SPD was not designed to handle.
Replacing the module without checking the installation can therefore lead to another failure.
Severe or repeated surge events place electrical and thermal stress on the protection element. Lightning-related surges are one source. Switching from motors, transformers, inverters, and other power equipment is another. The IET identifies motors and transformers as sources of man-made transients.
Failure after a major surge points toward surge stress. Repeated failure without an obvious event calls for other checks.
TOV can keep an SPD under stress for much longer than a short transient.
YQNT data shows why model-specific voltage limits matter. The supplied LDSP1s-C40 385Vac data specifies Uc of 385Vac, a 5-second TOV value of 500Vac, and a 120-minute TOV value of 650Vac. These are product-specific tested values, not universal limits for every SPD.
If failure occurs without a clear lightning event, check system voltage and abnormal supply conditions.
A correctly selected SPD can still fail if the installation is wrong. Loose terminals can create local heating. Poorly routed connections can increase voltage during a fast surge. An incorrect protection mode can leave part of the intended circuit unprotected.
The supplied technical material emphasizes conductor sizing and SPD connections. It also states that SPDs should be disconnected during insulation testing. Leaving a pluggable SPD connected during a high-voltage test can damage the protection element.
Installation errors can create problems even when the SPD model itself is suitable. If the failure appears to be installation-related, see how to install a Type 2 SPD correctly, including connection length, protection mode, PE connection, and backup protection.
An SPD branch must be coordinated with its overcurrent protection and available fault current. Poor coordination can leave the branch without the intended fault protection. A poorly matched breaker or fuse can also disconnect the SPD during a surge. For N-PE paths, follow-current behavior may also matter. Multiple SPDs may require coordination.
YQNT data is model-specific. The supplied data lists a maximum backup fuse of 63A gG for LDSP1s-C40 and 125A gG for LDSP1s7. These are product limits, not general fuse recommendations.
Use the exact SPD datasheet and installation instructions for protection selection.
Heat, moisture, contamination, and long-term electrical stress can affect service life. The supplied technical material notes that MOV aging can increase leakage current and temperature. High-frequency switching conditions also need component suitability to be checked.
Prevention should consider the actual environment, operating conditions, and product requirements.
Check the visual indicator or remote signal if provided. Record which module or phase shows the fault.
Record any lightning event, switching event, power disturbance, maintenance, or system modification. Note whether several modules failed together.
Verify system voltage and look for abnormal voltage conditions. Confirm that the installed SPD is intended for the system type and voltage.
A higher current rating does not fix voltage problems.
Inspect terminals, wiring, protection mode, grounding or bonding, and backup protection. Compare the installation with the manufacturer's requirements.
One failed module after a severe surge is different from the same module failing repeatedly. Repeated failure is a strong reason to investigate before installing another replacement.
Observed symptom | Possible direction | First check |
|---|---|---|
Red status indicator | End of life or internal disconnection | Manufacturer status definition |
Same module fails repeatedly | TOV, voltage condition, repeated stress, or local connection | System voltage and failure history |
SPD becomes unusually hot | Leakage, abnormal voltage, connection, or environment | Voltage, terminals, enclosure conditions |
Upstream protection operates | SPD fault or coordination issue | SPD and associated protective device |
Visible burning or deformation | Severe electrical or thermal stress | Device, wiring, event history |
Several modules fail together | Major surge or system-wide abnormal condition | Event timing and supply condition |
Repeated failure changes the diagnosis. If the same SPD fails soon after replacement, do not assume the new device is defective. Check whether the original condition remains.
A useful field rule is: one failure → inspect and replace when required; repeated failure → investigate the system before replacing again.
Focus on abnormal voltage, phase-specific problems, loose connections, backup protection, panel changes, and repeated surge exposure.
Replacement may be enough when the failure is isolated, the device has reached end of life, the system voltage is correct, the installation matches the manufacturer's instructions, and no abnormal condition is found.
Further investigation is warranted when the same module fails repeatedly, several SPDs fail together, abnormal heating is visible, supply voltage is uncertain, failure occurs without an obvious surge, the electrical system was recently modified, or backup protection operates unexpectedly.
Do not restore surge protection while leaving a known cause unchanged.
Prevention should follow the diagnosed cause. For surge stress, use an SPD arrangement suited to the installation and exposure. For TOV, verify system voltage and the SPD's declared TOV characteristics. For installation problems, follow the manufacturer's wiring, connection, and grounding requirements.
For backup protection, check the exact manufacturer's requirements and short-circuit conditions. For environmental stress, keep the SPD within its specified operating conditions and check its status during maintenance.
YQNT data includes thermal disconnection and green/red status indication on several AC SPD series. For example, LDSP1s-C40 specifies an internal thermal disconnection device, normal/fault display, and an operating temperature range of -40°C to +85°C. These features support monitoring and disconnection, but they do not prevent every failure mode.
The logic is similar, but the electrical conditions differ. AC SPDs must match the AC network. DC and PV SPDs require the correct DC voltage, polarity, protection mode, and applicable product requirements. Do not transfer an AC protection rule directly to a DC circuit.
A datasheet cannot predict every field failure, but it shows important operating limits.
Check the exact model's Uc or Ucpv, protection level, discharge ratings, short-circuit rating, backup protection, thermal disconnection, status indication, operating temperature, and protection configuration.
The supplied YQNT data gives model-specific values for Uc, TOV, In, Imax, Iimp, Up, Isccr, and maximum backup fuse. This is more useful than comparing one headline kA value.
If failure may involve product specification, review the exact datasheet and installation instructions before replacement.
Common causes include repeated surge stress, temporary overvoltage, unsuitable continuous voltage, installation problems, backup protection or fault-current issues, environmental stress, and component aging.
Repeated failure usually requires system-level investigation. Check voltage, installation, backup protection, recent system changes, and surge history before replacing it again.
Not automatically. A higher Imax or Iimp value does not correct an unsuitable voltage rating, protection mode, backup protection arrangement, or installation condition.
A higher kA rating does not automatically solve the problem. If you need to select a replacement, start with our SPD selection guide and check the system voltage, installation point, SPD type, and technical parameters together.
Check the status indication, system voltage, failure history, wiring and terminals, protection configuration, backup protection, and recent electrical changes.
An SPD failure is often a reason to check the electrical conditions around the device, not just the device itself. The practical approach is to identify the symptom, separate normal end of life from abnormal stress, check voltage and installation conditions, verify protection coordination, and then replace the SPD when required.
If the failure is isolated and the system checks out, replacement may be straightforward. If the same SPD keeps failing, find the underlying condition first. Then select and install the replacement according to the exact manufacturer's requirements.
